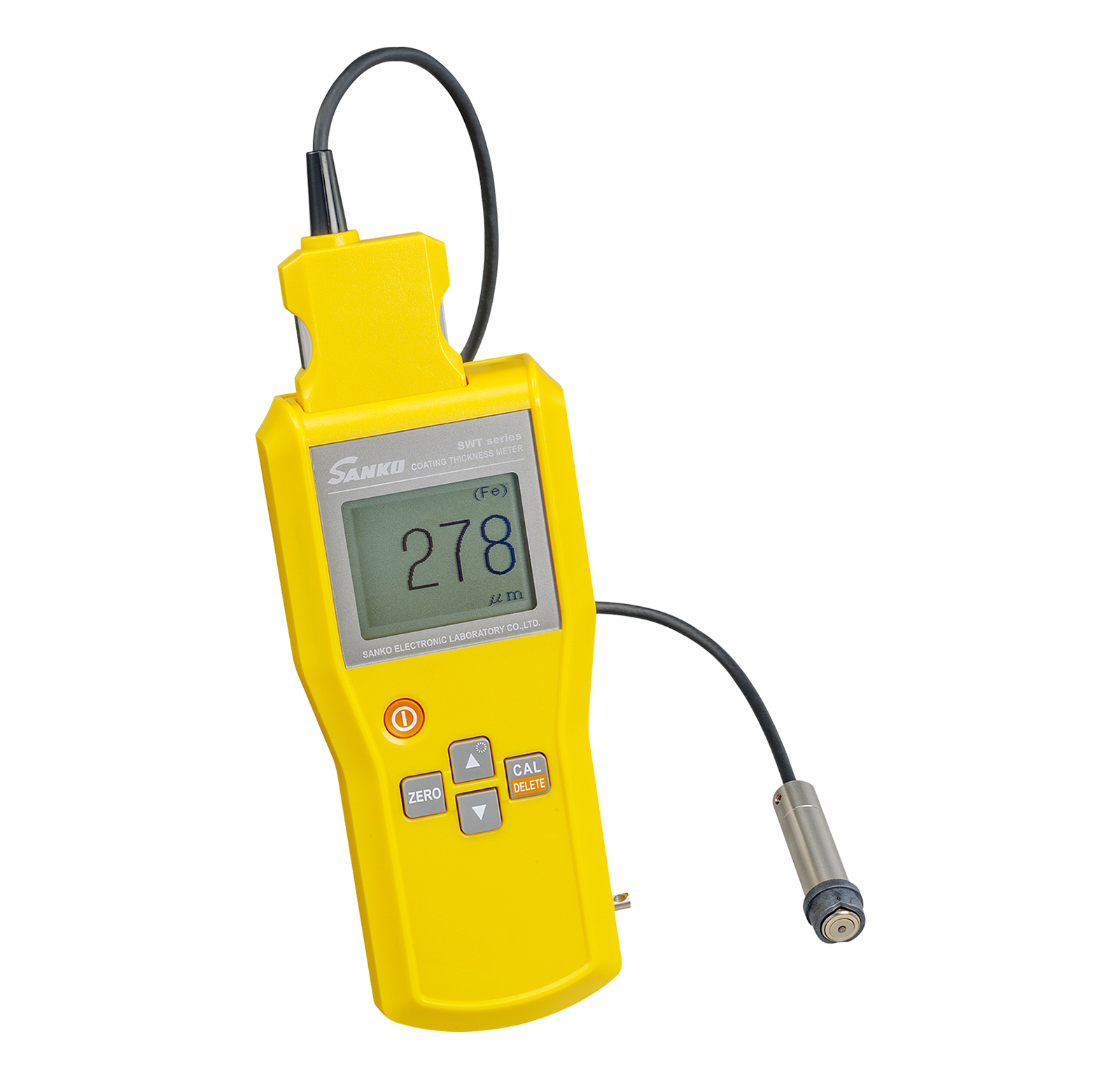

SWT-7000III
SPECIAL FEATURES
- Probe can be selected to meet optimal application of measurements.
- Firm-gripping feeling with slim body.
- Guide-messages of operation procedures on LCD screen.
- Simple, easy key-operations with 4-independent keys.
APPLICATIONS
●Coating / lining / plating
●Insulating films such as anodic oxide coating (ALMITE)
SPECIFICATION
Range
Depending on optional probes
Display
Graphic LCD (data , messages) , Backup light
Calibration
2 points calibration type
Calibration curve
1
Data transfer
Non
Power source
Dry battery (LR6 1.5V)×2, Auto-power off,
Continuous operation hours:
50hrs.
Continuous operation hours:
50hrs.
Temperature
0～40℃ (non-condensing)
Dimensions
72(W) × 30(H) × 156(D) mm
Weight
200g
Accessories
Carrying case,
Option
For ferrous substrate probe (Fe) For nonferrous substrate probe (NFe)
Interchangeable probes. Easy measuring methods with simple key-layout
