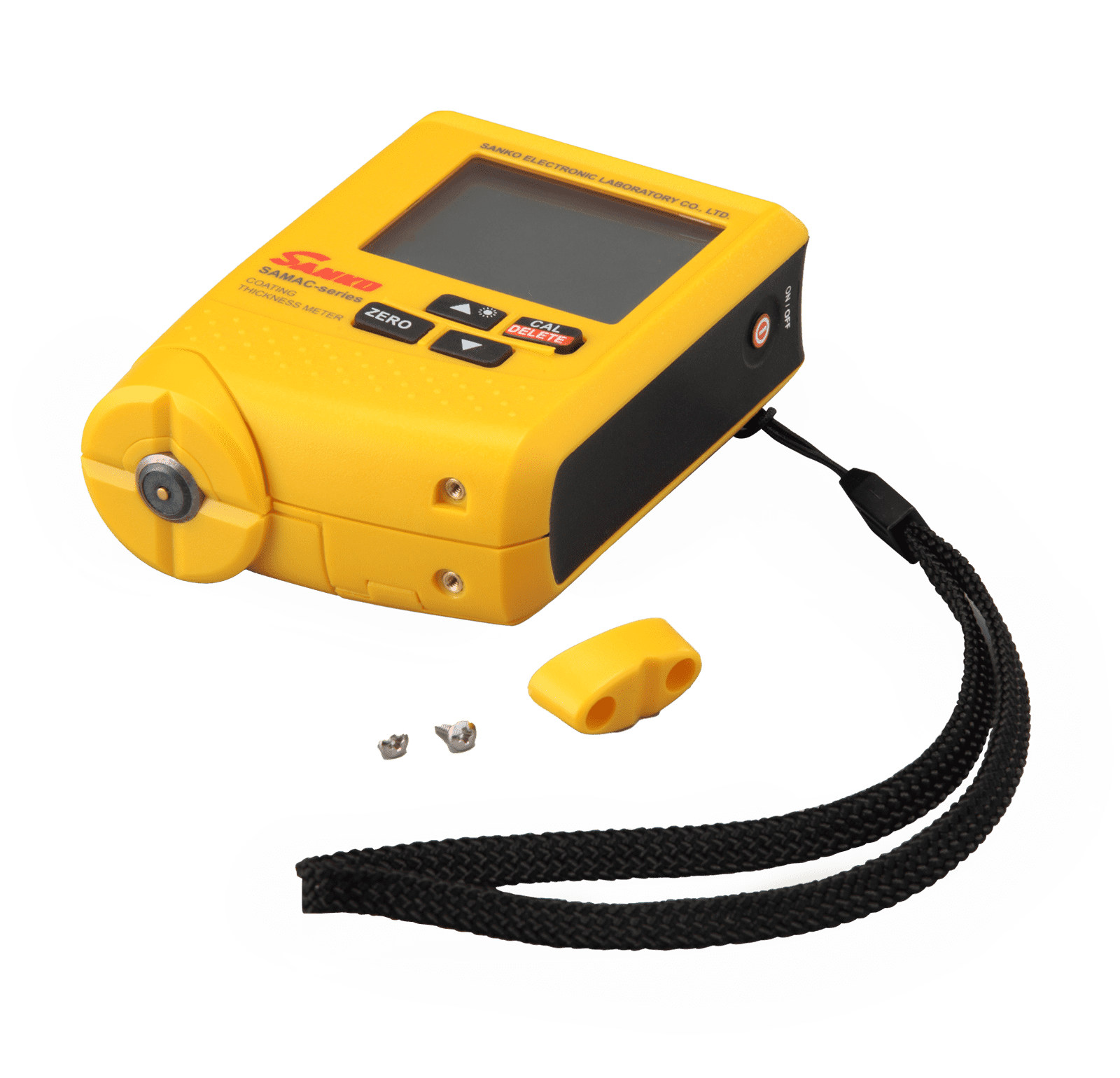

SAMAC-Pro

Interchangeable probes. Easy measuring methods with simple key-layout

SPECIAL FEATURES

  • Measurement with automatic selections of substrate metals
  • Possible to measure with backlight in the dark place.
  • FN-type for simple function, Pro-type for high-grade function
  • With memory function of measuring values/calibration curves
  • With output transferring data to PC

APPLICATIONS

●Coating/lining/plating

●Anodic oxide coating/insulating films

SPECIFICATION

Method
Dual (Electromagnetic/Eddy current)
Range
0～2.5 (Fe) / 2.0mm (NFe)
Display
Graphic LCD (data , messages) , Backup light
Resolution
1μｍ ： 0～999μｍ (Fe/NFe substrates)
switching to
0.1μｍ ： 0～400μｍ (Fe/NFe substrates)
0.5μｍ ： 400～500μｍ (Fe/NFe substrates)
0.01mm ： 1.00～2.50mm (Fe substrate)
0.01mm ： 1.00～2.00mm (NFe substrate)
Accuracy (perpendicularly testing on flat face）
0～100μｍ ： ±１μｍ (Fe/NFe substrates) or ±2％ of reading
101μm～2.5mm ： ±2% (Fe substrate)
101μm～2.0mm ： ±2% (NFe substrate)
Power source
Dry Battery (LR03 X 2)，Continuous operation hours：25 hs
Temperature
0～40℃ (non-condensing)
Dimensions
63(W) x 84(H) x 30(D) mm
Weight
about 125g
Accessories
Thickness standards, Zero plate for checking, Carrying case
Probe
One point contact constant pressure type, with Cross V cut
Measuring part:φ28mm , Probe part:φ10mm
Additional functions
・Switching of measuring mode (hold/non-interruption)
・Auto-Power-OFF
・Backup light
・Switching of Display Resolutions
・Switching of display (main/sub.)
・Deletion of calibration values
・Calibration 10
・Upper/lower limit setting (alarm/calib.)
・Statistical calculations
・USB connection
