TL-50
SPECIAL FEATURES
- The magnetic pole is attached to the end of a long, thin, telescopic handle, allowing measurement of coatings on thin pipes, behind equipment, at heights, and at a distance.
APPLICATIONS
SPECIFICATION
Method
Electromagnetic
Range
0.1 to 5mm
Accuracy
±5% of reading on uniform surface
Probe
One point contact type(unified with the extension guide)
Measuring part Φ25×30㎜（electrode Φ6×4mm）

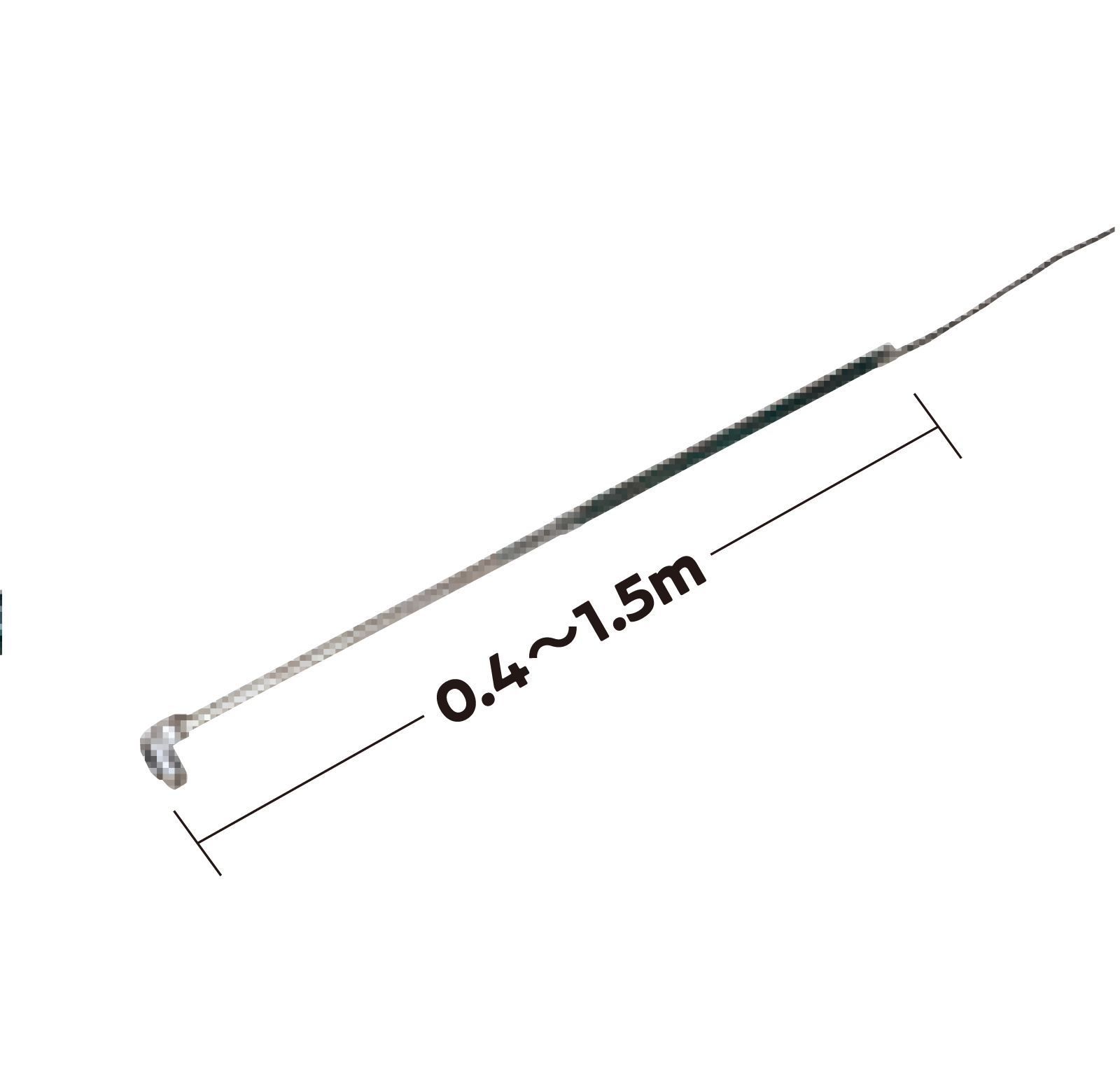

5 steps extension guide(approx.0.4 to 1.5m）
Measuring part Φ25×30㎜（electrode Φ6×4mm）
5 steps extension guide(approx.0.4 to 1.5m）
Power source
Dry batteries （R14p）× 4pcs.
Temperature
0 to 40 (except dew condensing condition)
Dimensions
Main body : 170(W) × 130(H) × 80(D)mm
Weight
1.7kg
Accessories
Standard thickness plate(0.1㎜、2㎜ each 1 sheet)
Shoulder bag
Probe case
Shoulder bag
Probe case
With extension guide. 0°, 90° head adjuster function.
(Built-to-order)
