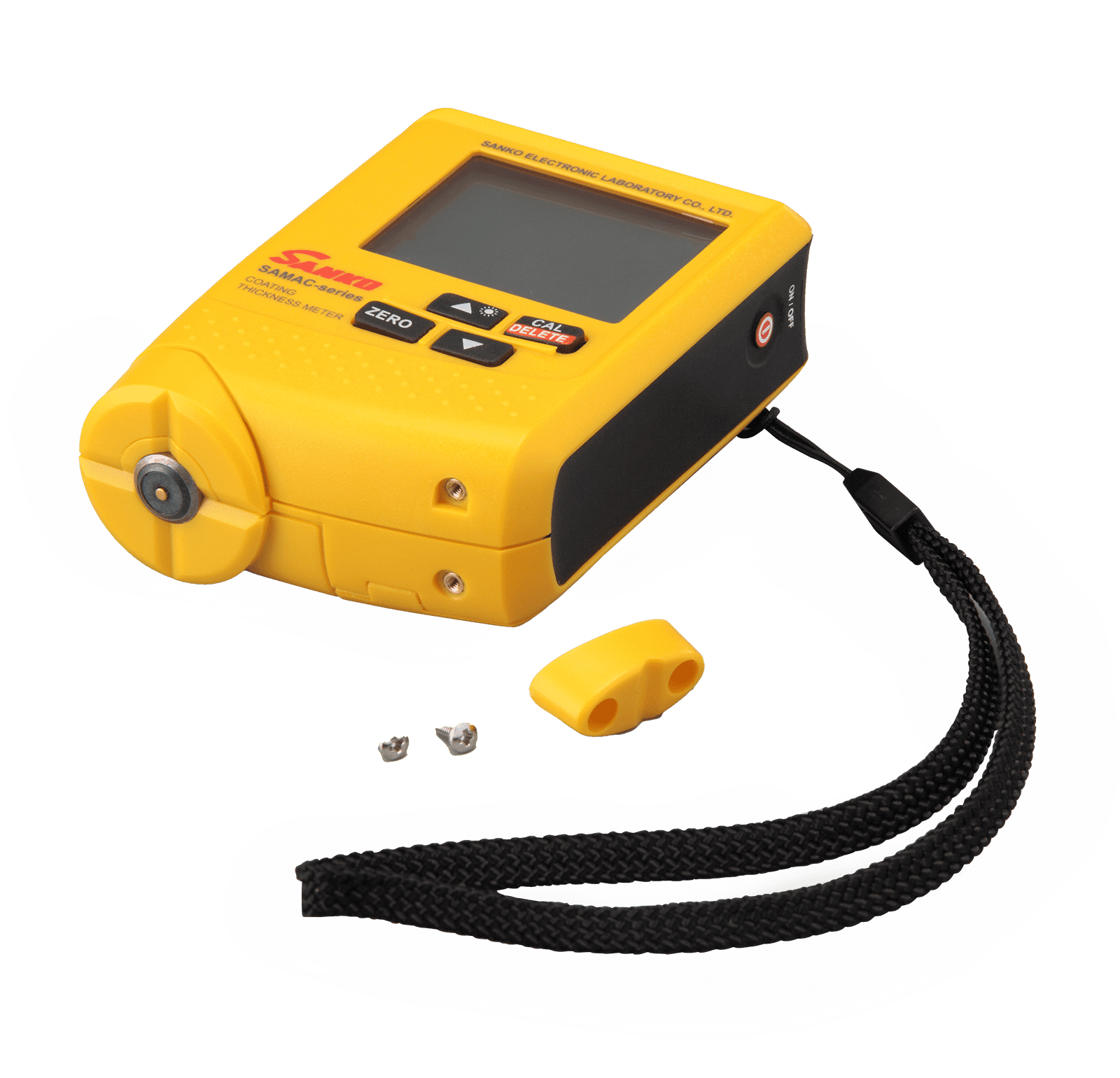

SAMAC-F
SPECIAL FEATURES
- Small sized coating thickness meter with probe built-in unit
- Easy setting with operational keys for Zero/Standard adjustment
- Easy to read numerical values with Large LCD equipped with backlight.
APPLICATIONS
●Coating, lining, plating
●Coating in general
SPECIFICATION
Method
Electromagnetic
Range
0～2.5mm
Display
Graphic LCD (data , messages) , Backup light
Resolution
1μｍ ： 0～999μｍ
switching to
0.1μｍ ： 0～400μｍ、
0.5μｍ ： 400～500μｍ
0.01mm ： 1.00～2.50mm
switching to
0.1μｍ ： 0～400μｍ、
0.5μｍ ： 400～500μｍ
0.01mm ： 1.00～2.50mm
Accuracy (perpendicularly testing on flat face)
0～100μｍ ： ±１μｍ or ±2％ of reading
101μm～2.5mm ： ±2% of reading
101μm～2.5mm ： ±2% of reading
Power source
Dry Battery (LR03 X 2)，Continuous operation hours ： 25 hours
Temperature
0～40℃ (non-condensing)
Dimensions
63(W) × 84(H) × 30(D) mm
Weight
about125g
Accessories
Thickness standards, Zero plate for checking, Carrying case
Probe
One point contact constant pressure type, with Cross V cut , Measuring part ： φ28mm Probe part ： φ10mm
Additional functions
Switching of measuring mode (hold/non-interruption)
Auto-Power-OFF
Backup light
Switching of Display Resolutions
Auto-Power-OFF
Backup light
Switching of Display Resolutions
Probe built-in type with palm size
